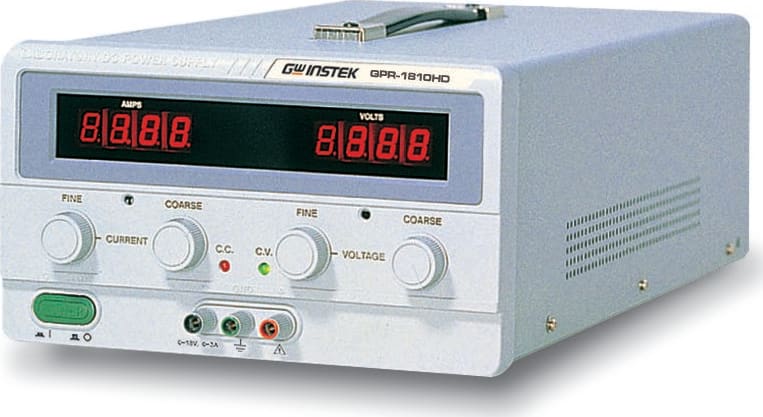

Instek GPR-1810HD Power Supply

Description
The GPR-M Series are single output, 180W, linear DC power supplies, featuring all the same functions as the GPR-H Series but for lower power demands. Like the GPR-H Series, the GPR-M Series are suitable for high-end precision bench top applications. Low load and line regulation for both constant voltage and constant current mode ensure reliable, predictable output. Overload and reverse polarity protection as well as internal selection for dynamic or constant load are standard.
In The Box
User Manual
Power Cord
Test lead GTL-105A x 1 ( GPR-6030D )
GTL-104A x 1 ( GPR-1810HD/3060D )
Manuals/Guides
Application Notes
How to Choose a DC Power Supply
Other
Manual
Low Price Guarantee
Instek Sample Factory Calibration Certificate
UNI-T - UDP6720
Rohde & Schwarz - NGP800
Manufacturer Specs
DC OUTPUT
     Output Volts (V)    Output Amps (A)
GPR-1810HD    0 ~ 18    0 ~ 10
GPR-3060D    0 ~ 30    0 ~ 6
GPR-6030D    0 ~ 60    0 ~ 3
CONSTANT VOLTAGE OPERATION
Regulation    Line regulation < 0.01% + 3mV
Load regulation <0.01% + 5mV (<10A)
Load regulation < 0.02% + 5mV (>10A)
Ripple & Noise    < 1mVrms (5Hz ~ 1MHz)
Recovery Time    < 100μS ( 50% load change, minimum load 0.5A )
Output range    0 to rating voltage continuously adjustable
CONSTANT CURRENT OPERATION
Regulation    Line regulation < 0.2% + 3mA
Load regulation <0.2% + 3mA
Ripple Current    < 3mArms
Output Range    0 to rating current continuously adjustable
METER
Type    3 1/2 Digits 0.5" LED Display
Accuracy    ±( 0.5% of rdg + 2 digits )
INSULATION
Chassis and Terminal    20MΩ or above (DC 500V)
Chassis and AC Cord    30MΩ or above (DC 500V)
POWER SOURCE
AC 100V/120V/220V/240V±10%, 50/60Hz
ACCESSORIES
User manual x 1
Power cord x 1
Test Lead GTL-104 x 1
DIMENSIONS & WEIGHT
255(W) x 145(H) x 335(D)mm
Approx. 11.5kg
Tech Specs
Power Supplies/DC Power Supplies Template
Outputs    Single
Voltage Output 1    Variable
Max Voltage Output 1    18 V
Programmable    No
Current Output 1    Variable
Max Current Output 1    10 A
Meter Type    Digital
Switching    Yes
Linear/Switching    Switching
Constant current/voltage    Yes
Test Equipment General Attributes
Product Weight    11.5 KILOS (25.35 LBS)
Product Height    335 MM (13.19 IN)
Product Length    255 MM (10.04 IN)
Product Width    145 MM (5.71 IN)
Data Logging    No
ECCN Number    EAR99
Calibration Included    Factory Calibration
Power Supply Voltage    120V/220V Universal
Country of Origin    China
Shipping Height    10.00 IN
Shipping Length    17.50 IN
Shipping Width    14.25 IN
